Channel Webhook

Mezon provides a feature that allows users to send messages to channels through corresponding created webhooks.

Creating a Channel Webhook

First, to work with channel webhooks, you need to make sure you are a member of a clan and have access to a channel.

Creating a webhook is a pretty straightforward process.

Go to the channel you want to create a webhook for, right-click to bring up a popup of actions that can be performed on that channel.
Click on the Edit Channel option and then go to the Integrations tab.

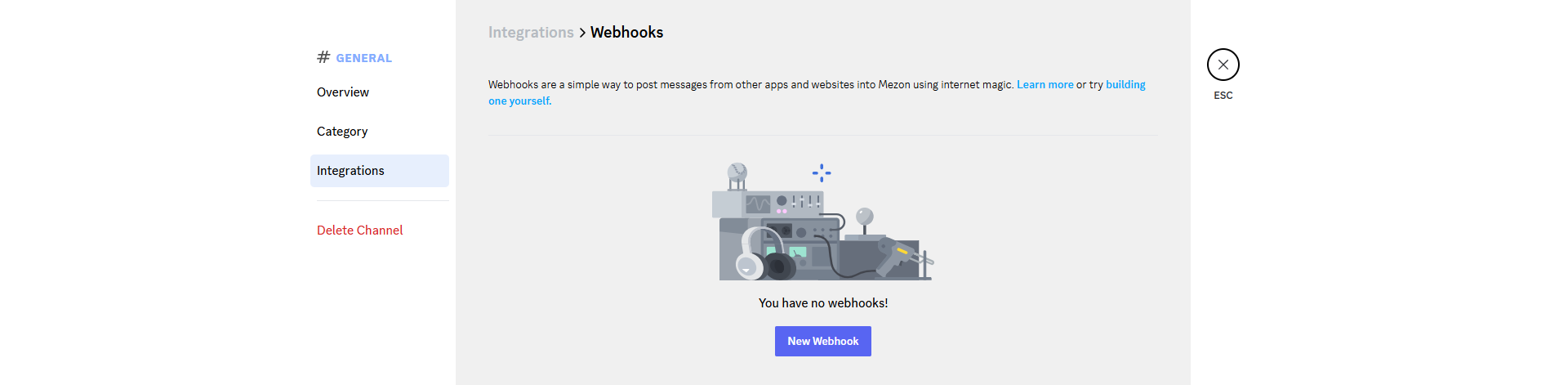

Click on New Webhook to proceed with creating a new webhook.

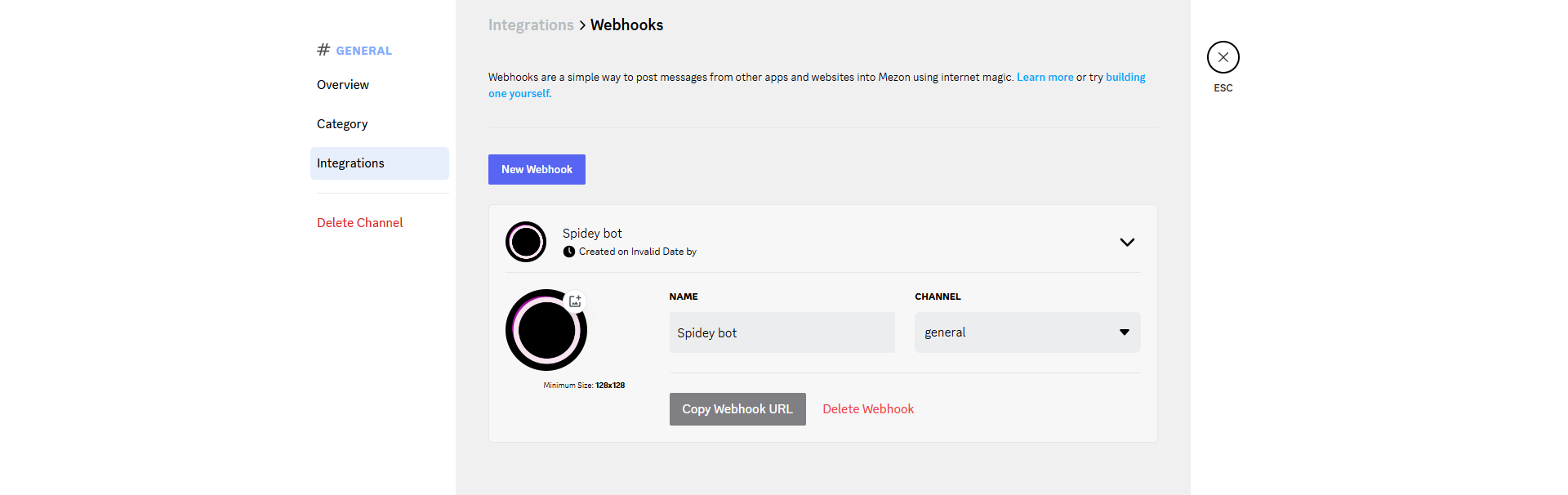

You will have one user (here named Spidey bot) and can customize this bot's name and avatar.
Click on Copy Webhook URL to get the webhook's endpoint, use it with the webhook payload to send messages to the channel.

Webhook Specification

Endpoint

The webhook is delivered via an HTTP POST request to a unique URL generated for each webhook integration.

URL Structure:

https://webhook.mezon.ai/webhooks/{channelId}/{token}

URL Parameters:

Parameter	Type	Description
`channelId`	string	A unique identifier for the channel.
`token`	string	A security token for authenticating the request. It appears to be a base64 encoded string or a JSON Web Token (JWT) containing information for verifying the request's authenticity.

Request Header

Header	Value	Description
`Content-Type`	`application/json`	Indicates that the request body is in JSON format.

Request Body

The body of the request contains a JSON object with details of the message that triggered the webhook.

Root Object

Field	Type	Required	Description
`type`	string	Yes	The type of the webhook event. For this example, it is `"hook"`.
`message`	object	Yes	An object containing the details of the message.

Message Formatting

This object encapsulates the content and metadata of the message.

Field	Type	Required	Description
`t`	string	Yes	The raw text content of the message.
`mk`	array of objects	No	An array of objects describing markdown or special formatting applied to the message text. It's noteworthy that multiple `mk` arrays can be present. The possible values for `type` within this object could include `lk` (link) and `pre` (pre-formatted text).
`mentions`	array of objects	No	An array of objects, each representing a user mentioned in the message.
`images`	array of objects	No	An array of objects, each representing an image attached to the message.

`mk` Object (markdown)

Field	Type	Required	Description
`type`	string	Yes	The type of formatting applied (e.g., `"lk"`, `"pre"`).
`s`	integer	Yes	The starting character index of the formatted segment in the `t` string.
`e`	integer	Yes	The ending character index of the formatted segment in the `t` string.

`mentions` Object

Field	Type	Required	Description
`username`	string	Yes	The username of the mentioned user.
`user_id`	string	Yes	The unique identifier of the mentioned user.
`s`	integer	Yes	The starting character index of the mention in the `t` string.
`e`	integer	Yes	The ending character index of the mention in the `t` string.

`images` Object

Field	Type	Required	Description
`fn`	string	Yes	The filename of the image.
`sz`	integer	Yes	The size of the image in bytes.
`url`	string	Yes	The public URL to access the image.
`ft`	string	Yes	The MIME type of the image (e.g., `"image/jpeg"`).
`w`	integer	Yes	The width of the image in pixels.
`h`	integer	Yes	The height of the image in pixels.

Channel Webhook example

curl --location 'https://webhook.mezon.ai/webhooks/1840666462029615104/MTc2MDAzODcxNTU5NDU0OTgzNzoxODQwNjY2NDYyMDEyODM3ODg4OjE4NDA2NjY0NjIwMjk2MTUxMDQ6MTk3NjM3MTczNTI3MTgzNzY5Ng.zLl5tsGaFYnC3sPXgOhVlZoBNrVeoC8hD6oKv0hxavs' \
--header 'Content-Type: application/json' \
--data-raw '{
    "type": "hook",
    "message": {
      "t": "[pre] Webhook message example: [lk] https://mezon.ai \n [mention] mezon.webhook@ncc.asia",
      "mk": [
        {
          "type": "pre",
          "s": 0,
          "e": 30
        },
        {
          "type": "lk",
          "s": 36,
          "e": 54
        }
      ],
      "mentions": [
        {
          "user_id": "1783755414765047808",
          "s": 65,
          "e": 88
        }
      ],
      "images": [
        {
          "fn": "thumbnail_dog1.jpg",
          "sz": 5620,
          "url": "https://cdn.mezon.vn/0/1843962578301095936/1829065039080853500/95_0thumbnail_dog1.jpg",
          "ft": "image/jpeg",
          "w": 275,
          "h": 183
        }
      ]
    }
  }

import http.client
import json

conn = http.client.HTTPSConnection("webhook.mezon.ai")
payload = json.dumps({
  "type": "hook",
  "message": {
    "t": "[pre] Webhook message example: [lk] https://mezon.ai \n [mention] mezon.webhook@ncc.asia",
    "mk": [
      {
        "type": "pre",
        "s": 0,
        "e": 30
      },
      {
        "type": "lk",
        "s": 36,
        "e": 54
      }
    ],
    "mentions": [
      {
        "user_id": "1783755414765047808",
        "s": 65,
        "e": 88
      }
    ],
    "images": [
      {
        "fn": "thumbnail_dog1.jpg",
        "sz": 5620,
        "url": "https://cdn.mezon.vn/0/1843962578301095936/1829065039080853500/95_0thumbnail_dog1.jpg",
        "ft": "image/jpeg",
        "w": 275,
        "h": 183
      }
    ]
  }
})
headers = {
  'Content-Type': 'application/json'
}
conn.request("POST", "/webhooks/1840666462029615104/MTc2MDAzODcxNTU5NDU0OTgzNzoxODQwNjY2NDYyMDEyODM3ODg4OjE4NDA2NjY0NjIwMjk2MTUxMDQ6MTk3NjM3MTczNTI3MTgzNzY5Ng.zLl5tsGaFYnC3sPXgOhVlZoBNrVeoC8hD6oKv0hxavs", payload, headers)
res = conn.getresponse()
data = res.read()
print(data.decode("utf-8"))

package main

import (
  "fmt"
  "strings"
  "net/http"
  "io"
)

func main() {

  url := "https://webhook.mezon.ai/webhooks/1840666462029615104/MTc2MDAzODcxNTU5NDU0OTgzNzoxODQwNjY2NDYyMDEyODM3ODg4OjE4NDA2NjY0NjIwMjk2MTUxMDQ6MTk3NjM3MTczNTI3MTgzNzY5Ng.zLl5tsGaFYnC3sPXgOhVlZoBNrVeoC8hD6oKv0hxavs"
  method := "POST"

  payload := strings.NewReader(`{`+"
"+`
  "type": "hook",`+"
"+`
  "message": {`+"
"+`
    "t": "[pre] Webhook message example: [lk] https://mezon.ai \n [mention] mezon.webhook@ncc.asia",`+"
"+`
    "mk": [`+"
"+`
      {`+"
"+`
        "type": "pre",`+"
"+`
        "s": 0,`+"
"+`
        "e": 30`+"
"+`
      },`+"
"+`
      {`+"
"+`
        "type": "lk",`+"
"+`
        "s": 36,`+"
"+`
        "e": 54`+"
"+`
      }`+"
"+`
    ],`+"
"+`
    "mentions": [`+"
"+`
      {`+"
"+`
        "user_id": "1783755414765047808",`+"
"+`
        "s": 65,`+"
"+`
        "e": 88`+"
"+`
      }`+"
"+`
    ],`+"
"+`
    "images": [`+"
"+`
      {`+"
"+`
        "fn": "thumbnail_dog1.jpg",`+"
"+`
        "sz": 5620,`+"
"+`
        "url": "https://cdn.mezon.vn/0/1843962578301095936/1829065039080853500/95_0thumbnail_dog1.jpg",`+"
"+`
        "ft": "image/jpeg",`+"
"+`
        "w": 275,`+"
"+`
        "h": 183`+"
"+`
      }`+"
"+`
    ]`+"
"+`
  }`+"
"+`
}`)

  client := &http.Client {
  }
  req, err := http.NewRequest(method, url, payload)

  if err != nil {
    fmt.Println(err)
    return
  }
  req.Header.Add("Content-Type", "application/json")

  res, err := client.Do(req)
  if err != nil {
    fmt.Println(err)
    return
  }
  defer res.Body.Close()

  body, err := io.ReadAll(res.Body)
  if err != nil {
    fmt.Println(err)
    return
  }
  fmt.Println(string(body))
}

OkHttpClient client = new OkHttpClient().newBuilder()
  .build();
MediaType mediaType = MediaType.parse("application/json");
RequestBody body = RequestBody.create(mediaType, "{\r\n  \"type\": \"hook\",\r\n  \"message\": {\r\n    \"t\": \"[pre] Webhook message example: [lk] https://mezon.ai \\n [mention] mezon.webhook@ncc.asia\",\r\n    \"mk\": [\r\n      {\r\n        \"type\": \"pre\",\r\n        \"s\": 0,\r\n        \"e\": 30\r\n      },\r\n      {\r\n        \"type\": \"lk\",\r\n        \"s\": 36,\r\n        \"e\": 54\r\n      }\r\n    ],\r\n    \"mentions\": [\r\n      {\r\n        \"user_id\": \"1783755414765047808\",\r\n        \"s\": 65,\r\n        \"e\": 88\r\n      }\r\n    ],\r\n    \"images\": [\r\n      {\r\n        \"fn\": \"thumbnail_dog1.jpg\",\r\n        \"sz\": 5620,\r\n        \"url\": \"https://cdn.mezon.vn/0/1843962578301095936/1829065039080853500/95_0thumbnail_dog1.jpg\",\r\n        \"ft\": \"image/jpeg\",\r\n        \"w\": 275,\r\n        \"h\": 183\r\n      }\r\n    ]\r\n  }\r\n}");
Request request = new Request.Builder()
  .url("https://webhook.mezon.ai/webhooks/1840666462029615104/MTc2MDAzODcxNTU5NDU0OTgzNzoxODQwNjY2NDYyMDEyODM3ODg4OjE4NDA2NjY0NjIwMjk2MTUxMDQ6MTk3NjM3MTczNTI3MTgzNzY5Ng.zLl5tsGaFYnC3sPXgOhVlZoBNrVeoC8hD6oKv0hxavs")
  .method("POST", body)
  .addHeader("Content-Type", "application/json")
  .build();
Response response = client.newCall(request).execute();

var client = new HttpClient();
var request = new HttpRequestMessage(HttpMethod.Post, "https://webhook.mezon.ai/webhooks/1840666462029615104/MTc2MDAzODcxNTU5NDU0OTgzNzoxODQwNjY2NDYyMDEyODM3ODg4OjE4NDA2NjY0NjIwMjk2MTUxMDQ6MTk3NjM3MTczNTI3MTgzNzY5Ng.zLl5tsGaFYnC3sPXgOhVlZoBNrVeoC8hD6oKv0hxavs");
var content = new StringContent("{\r\n  \"type\": \"hook\",\r\n  \"message\": {\r\n    \"t\": \"[pre] Webhook message example: [lk] https://mezon.ai \\n [mention] mezon.webhook@ncc.asia\",\r\n    \"mk\": [\r\n      {\r\n        \"type\": \"pre\",\r\n        \"s\": 0,\r\n        \"e\": 30\r\n      },\r\n      {\r\n        \"type\": \"lk\",\r\n        \"s\": 36,\r\n        \"e\": 54\r\n      }\r\n    ],\r\n    \"mentions\": [\r\n      {\r\n        \"user_id\": \"1783755414765047808\",\r\n        \"s\": 65,\r\n        \"e\": 88\r\n      }\r\n    ],\r\n    \"images\": [\r\n      {\r\n        \"fn\": \"thumbnail_dog1.jpg\",\r\n        \"sz\": 5620,\r\n        \"url\": \"https://cdn.mezon.vn/0/1843962578301095936/1829065039080853500/95_0thumbnail_dog1.jpg\",\r\n        \"ft\": \"image/jpeg\",\r\n        \"w\": 275,\r\n        \"h\": 183\r\n      }\r\n    ]\r\n  }\r\n}", null, "application/json");
request.Content = content;
var response = await client.SendAsync(request);
response.EnsureSuccessStatusCode();
Console.WriteLine(await response.Content.ReadAsStringAsync());

const myHeaders = new Headers();
myHeaders.append("Content-Type", "application/json");

const raw = JSON.stringify({
  "type": "hook",
  "message": {
    "t": "[pre] Webhook message example: [lk] https://mezon.ai \n [mention] mezon.webhook@ncc.asia",
    "mk": [
      {
        "type": "pre",
        "s": 0,
        "e": 30
      },
      {
        "type": "lk",
        "s": 36,
        "e": 54
      }
    ],
    "mentions": [
      {
        "user_id": "1783755414765047808",
        "s": 65,
        "e": 88
      }
    ],
    "images": [
      {
        "fn": "thumbnail_dog1.jpg",
        "sz": 5620,
        "url": "https://cdn.mezon.vn/0/1843962578301095936/1829065039080853500/95_0thumbnail_dog1.jpg",
        "ft": "image/jpeg",
        "w": 275,
        "h": 183
      }
    ]
  }
});

const requestOptions = {
  method: "POST",
  headers: myHeaders,
  body: raw,
  redirect: "follow"
};

fetch("https://webhook.mezon.ai/webhooks/1840666462029615104/MTc2MDAzODcxNTU5NDU0OTgzNzoxODQwNjY2NDYyMDEyODM3ODg4OjE4NDA2NjY0NjIwMjk2MTUxMDQ6MTk3NjM3MTczNTI3MTgzNzY5Ng.zLl5tsGaFYnC3sPXgOhVlZoBNrVeoC8hD6oKv0hxavs", requestOptions)
  .then((response) => response.text())
  .then((result) => console.log(result))
  .catch((error) => console.error(error));

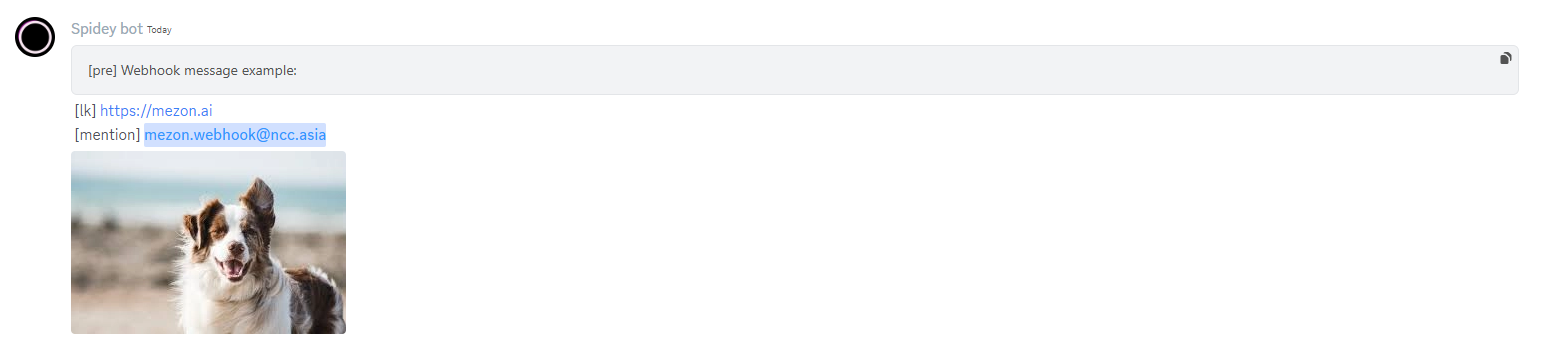

Result
